Building an Agentic Kubernetes Platform That Runs Anywhere

The Agentic Kubernetes Platform is an Apache-2.0 reference architecture for running specialist agents, model inference, and training without tying the application contract to one cloud. It uses the same agent protocol on AWS EKS and Proxmox-hosted Kubernetes; only the capacity, identity, load-balancing, and object-storage adapters change.

The core design decision: events between agents

Direct HTTP calls produce a deceptively simple demo but tightly couple agent availability, retry behavior, and scaling. Here, the supervisor discovers an exact skill from an Agent Card, publishes a JSON-RPC 2.0 request to the agent's Kafka topic, and correlates the response from results.* using the request ID.

client → Cilium Gateway → supervisor → tasks.weather
                                      → weather worker
client ← supervisor ← results.weather ←┘

Workers publish their result before committing the input offset. That gives the system an explicit at-least-once contract. It does not make an external weather API, Neo4j, and Kafka one transaction, so each handler must use the request or document ID as an idempotency key. This is a more useful production contract than pretending distributed side effects are exactly once.

Every specialist owns a directory, versioned Agent Card, task/result topics, domain implementation, container, and focused tests. The shared runtime owns JSON-RPC validation, manual Kafka commits, Redis caching, Prometheus metrics, and optional MLflow traces. Domain behavior remains outside the framework.

Three specialists demonstrate different workloads

The weather agent is intentionally lightweight. It resolves imperfect location phrasing through Open-Meteo, serves current conditions and forecasts, and caches repeated reads. It demonstrates the minimum useful agent contract without requiring an LLM.

The knowledge-graph agent demonstrates expensive asynchronous work. Its API stores an uploaded PDF, text, or JSON document in S3 or RustFS and sends only a durable URI and metadata through Kafka. A KEDA-scaled worker extracts bounded chunks through an OpenAI-compatible model, validates entities and relationships against a versioned ontology, writes graph truth to Neo4j, and indexes semantic candidates in Qdrant. The included explorer renders the result in 2D or 3D and traces shortest paths with evidence back to the source object.

The analytics agent delegates governed questions such as analytics.usage to Cube Core. It never accepts arbitrary SQL. Instead it constructs a bounded semantic query, adds the authenticated conversation owner as a tenant filter, signs a short-lived Cube JWT, and returns both rows and the exact query for reproduction. The sibling Cube operator owns Cube API, refresh worker, and Cube Store lifecycle.

Conversations, identity, and model routing

The minimal dashboard is deliberately not another runtime. It calls the same supervisor API, persists user and pending assistant messages in PostgreSQL, and polls until a correlated Kafka result completes the response. Read-only sharing uses a rotatable 256-bit token; PostgreSQL stores only its SHA-256 digest.

Cognito is the managed AWS identity provider, while the bare-metal profile uses the Keycloak Operator. APIs derive tenant identity from verified OIDC claims, not request parameters. Redis remains disposable cache, PostgreSQL owns relational workflow state, Neo4j owns explicit relationships, Qdrant owns rebuildable vectors, and S3/RustFS owns durable source artifacts.

The supervisor's LLM gateway is a visible, replaceable component. A local Apple Silicon environment can route prompts through an MLX-hosted Qwen 27B 4-bit model; GPU clusters use an OpenAI-compatible endpoint such as vLLM. Named skills still work when the router model is absent. Bring Your Own Agent requires only a valid Agent Card and Kafka contract; Bring Your Own Model requires an internal OpenAI-compatible endpoint and explicit registration.

Portable infrastructure without pretending it is identical

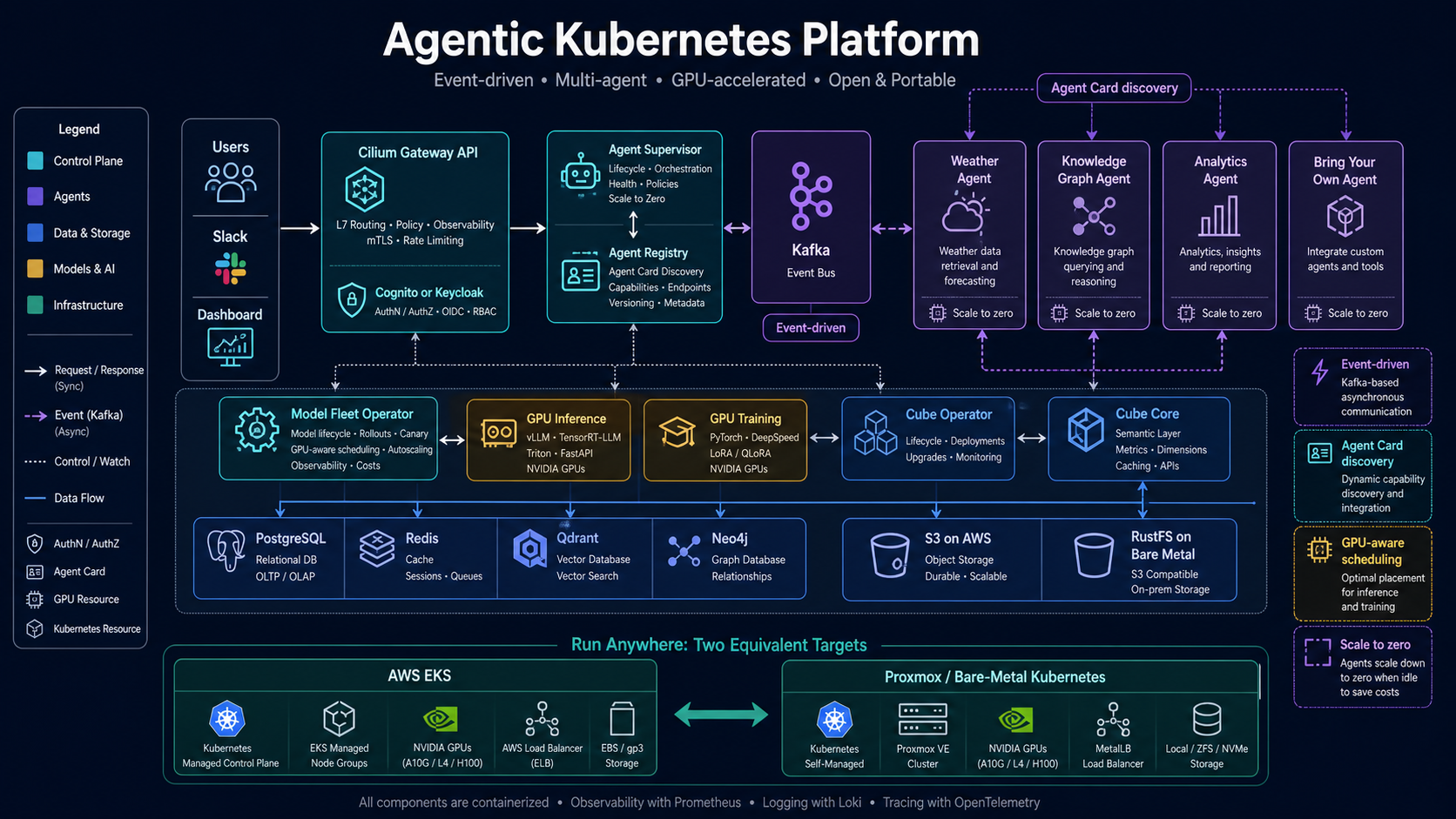

The two targets share Cilium CNI, NetworkPolicy, Envoy, Gateway API, Kafka, KEDA, Helm packaging, and agent contracts. Their infrastructure adapters differ:

Object storage is the durable source for models and datasets. An init container hydrates a PVC or local NVMe cache concurrently and atomically, so restarts can reuse warm files rather than repeatedly downloading from an external model registry. This improves startup only when the cache is retained and networking is appropriately provisioned; the project does not claim storage eliminates model-loading time.

Reproduce it locally

Docker Compose is the shortest application-level path:

git clone https://github.com/sqe/agentic-kubernetes-platform.git
cd agentic-kubernetes-platform
make install && make test
docker compose up --build
open http://localhost:8002/dashboard

Kind exercises the Kubernetes topology, including Cilium Gateway API, Redpanda's Kafka-compatible API, KEDA, RustFS, PostgreSQL, Qdrant, Neo4j, Redis, and operator-managed Keycloak:

make kind-up
make kind-status
curl --fail http://127.0.0.1:8080/knowledge/health
open http://127.0.0.1:8080/dashboard
make kind-down

The repository separates source checks from deployment evidence. Unit tests, Helm rendering, Terraform validation, and Compose validation prove only their stated scope. Runtime evidence should include request IDs, Kafka correlation, Kubernetes status, redacted Hubble flows, and timestamps—not unsupported claims about production availability, throughput, or savings.

Explore the project: GitHub repository · Architecture · Adding an agent
