A Kubernetes Operator for Self-Hosted Cube Core
The Cube Core MicroK8s Operator
encodes self-hosted Cube Core as a declarative Kubernetes API. A CubeCluster
describes API replicas, refresh workers, Cube Store topology, model and Secret
references, storage, and service exposure. The controller continuously turns
that intent into standard Kubernetes resources and reports readiness back to
the custom resource.
Despite its name, the operator is not tied to MicroK8s. It uses standard Kubernetes APIs on supported managed or self-hosted clusters; Proxmox and MicroK8s are optional infrastructure, not prerequisites. The current minimum Kubernetes version is 1.34. I use it in local cluster setups and on Kind.
Release status: v0.2.0 includes the agent-execution pipeline and MCP demo described below. Its Go and Kopf E2E checks passed and its images and OLM catalog have been published; the release workflow failed OLM verification because its subscription requested v0.1.0 from the v0.2.0-only catalog. No GitHub prerelease was created. Until a corrected release passes verification, the installation instructions below use the installation-tested v0.1.0 alpha catalog, which does not include agent-execution ingestion. The OperatorHub submission is under community review, not an available listing; the custom OLM catalog works independently of that review.

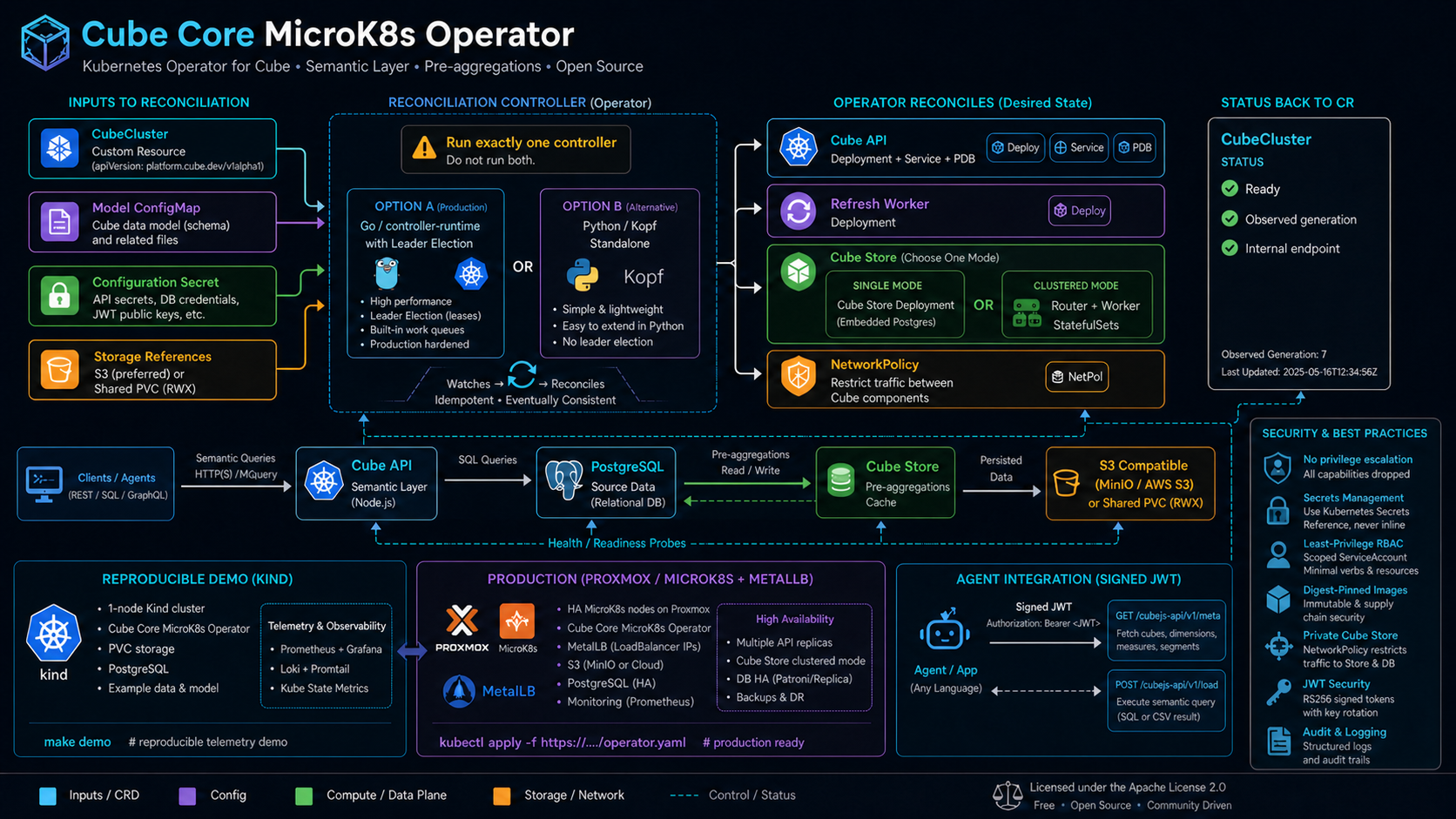

RustFS is the S3-compatible object-storage option shown in the diagram. It is provisioned separately; the operator references storage rather than deploying RustFS itself.
Why an operator instead of deployment YAML
A static manifest can start Cube, but it does not provide a durable ownership model. The operator validates referenced configuration, applies owner references, chooses single or clustered Cube Store resources, preserves allocated Service fields, removes resources made obsolete by topology changes, and calculates readiness from every expected component.
The platform.cube.dev/v1alpha1 API reconciles:
- Cube API Deployment, Service, and PodDisruptionBudget;
- a dedicated refresh-worker Deployment;
- either one Cube Store Deployment or router/worker StatefulSets;
- private services and a NetworkPolicy around Cube Store; and
- a Ready condition with observed generation and internal endpoint.
The operator reads model ConfigMaps and configuration Secrets but does not create credentials. This keeps database passwords and JWT signing material out of custom-resource specs and Git history.
One API, two controller implementations
The default controller is written in Go with controller-runtime and Kubernetes Lease leader election. It is the recommended production path because multiple manager replicas can coordinate safely. A separately packaged Python/Kopf controller implements the same resource contract as a readable, Pythonic alternative for teams that prefer rapid Python iteration.
Exactly one implementation may run at a time. Both controllers own the same Deployments, Services, StatefulSets, and status fields; running both would create reconciliation races. Switching therefore means deleting one controller Deployment, waiting for termination, and only then applying the other.
The direct deployment guide covers Go/Kopf installation. Local image tags must be replaced with registry images outside Kind. The OLM route below uses the already-published Go image.
This dual implementation is useful beyond language preference: it documents which behavior belongs to the API contract and which belongs to a particular framework.
Install on Kubernetes
You need Kubernetes 1.34+, kubectl, classic OLM, a reachable PostgreSQL data
source, and a default StorageClass or an existing suitable PVC. Your networking
plugin must implement NetworkPolicy to enforce the Cube Store restrictions.
Install the public operator catalog
If classic OLM is absent, install
Operator SDK and run
operator-sdk olm install --version 0.46.0 --timeout 5m once. This uses classic
OLM's CatalogSource and Subscription, not OLM v1. Do not run it alongside
a direct Go or Kopf installation.
git clone https://github.com/sqe/cube-microk8s-operator.git
cd cube-microk8s-operator
kubectl apply -f config/olm/install.yaml
kubectl -n cube-system wait --for=create \
csv/cube-microk8s-operator.v0.1.0 --timeout=5m
kubectl -n cube-system wait --for=jsonpath='{.status.phase}'=Succeeded \
csv/cube-microk8s-operator.v0.1.0 --timeout=5m
kubectl -n cube-system rollout status deployment/cube-operator --timeout=2m
This installs the alpha Go controller cluster-wide in cube-system, not a Cube
instance or a database. The manifest assumes the global catalog namespace is
olm; adapt the CatalogSource namespace and Subscription's sourceNamespace
if yours differs. Review its automatic InstallPlan approval policy before use;
do not create a second OperatorGroup in an existing operator namespace.
OperatorHub submission #9651
is a separate community review; OpenShift console listing is also separate.
Configure a model, credentials, and storage
This minimal model checks connectivity without depending on an application table. Replace it with semantic models for your own data afterward.
kubectl create namespace cube --dry-run=client -o yaml | kubectl apply -f -
kubectl -n cube apply -f - <<'YAML'
apiVersion: v1
kind: ConfigMap
metadata: {name: cube-model}
data:
Connectivity.yml: |
cubes:
- name: Connectivity
sql: SELECT 1 AS id
measures:
- name: count
type: count
dimensions:
- name: id
sql: id
type: number
primary_key: true
YAML
# Bash: enter credentials interactively; never commit them.
read -rp 'PostgreSQL hostname: ' CUBE_DB_HOST
read -rp 'PostgreSQL database: ' CUBE_DB_NAME
read -rp 'PostgreSQL user: ' CUBE_DB_USER
read -rsp 'PostgreSQL password: ' CUBE_DB_PASS; echo
read -rsp 'Cube API signing secret: ' CUBE_API_SECRET; echo
kubectl -n cube create secret generic cube-configuration \
--from-literal=CUBEJS_DB_TYPE=postgres \
--from-literal=CUBEJS_DB_HOST="$CUBE_DB_HOST" \
--from-literal=CUBEJS_DB_PORT=5432 \
--from-literal=CUBEJS_DB_NAME="$CUBE_DB_NAME" \
--from-literal=CUBEJS_DB_USER="$CUBE_DB_USER" \
--from-literal=CUBEJS_DB_PASS="$CUBE_DB_PASS" \
--from-literal=CUBEJS_API_SECRET="$CUBE_API_SECRET" \
--dry-run=client -o yaml | kubectl apply -f -
unset CUBE_DB_HOST CUBE_DB_NAME CUBE_DB_USER CUBE_DB_PASS CUBE_API_SECRET
kubectl -n cube apply -f - <<'YAML'
apiVersion: v1
kind: PersistentVolumeClaim
metadata: {name: cube-remote}
spec:
accessModes: [ReadWriteOnce]
resources:
requests: {storage: 10Gi}
---
apiVersion: platform.cube.dev/v1alpha1
kind: CubeCluster
metadata: {name: analytics}
spec:
modelConfigMap: cube-model
configurationSecret: cube-configuration
api: {replicas: 2}
refreshWorker: {replicas: 1}
cubeStore:
mode: single
remoteStorage:
type: persistentVolume
persistentVolume: {existingClaim: cube-remote}
scratch: {size: 2Gi}
service: {type: ClusterIP}
YAML
Use an external secret manager and the database TLS settings appropriate for your provider in production. The operator does not provision PostgreSQL. The default Cube Store image is for amd64. On arm64, select the tested arm64 image before waiting for readiness:
kubectl -n cube patch cubecluster analytics --type=merge -p \
'{"spec":{"cubeStore":{"image":"cubejs/cubestore:arm64v8@sha256:d9254a2166513e99f888da6f85362362357805116cd4d70f2b22e318e6ca5007"}}}'
Then, on either architecture:
kubectl -n cube wait --for=condition=Ready cubecluster/analytics --timeout=15m
kubectl -n cube get cubecluster analytics
kubectl -n cube port-forward --address 127.0.0.1 service/analytics-api 4000:4000
# In another terminal:
curl --fail --silent --show-error --max-time 10 http://127.0.0.1:4000/readyz
Health is unauthenticated. Metadata and queries require a short-lived Cube JWT,
sent directly in Authorization without Bearer; see the
REST examples.
Public access needs your own TLS ingress and authorization policy. This compact
single-store example is not an HA storage design.
Storage and query topology
Cube API translates dimensions and measures from the model ConfigMap into SQL for the configured data source. Cube Store serves caching and pre-aggregation; the refresh worker updates those structures independently from request-serving API replicas.
Single mode supports an ordinary existing PVC and is appropriate for compact
installations. Clustered mode creates a router and multiple worker StatefulSets.
Its remote directory must be genuinely shared and concurrently mountable, or it
should use S3. Merely attaching the same ReadWriteOnce volume name to several
nodes does not create a distributed filesystem.
apiVersion: platform.cube.dev/v1alpha1
kind: CubeCluster
metadata:
name: analytics
namespace: cube
spec:
modelConfigMap: cube-model
configurationSecret: cube-configuration
api: {replicas: 2}
refreshWorker: {replicas: 1}
cubeStore:
mode: clustered
workers: 2
remoteStorage:
type: s3
s3:
bucket: company-cube-prod
region: us-west-2
secretRef: cubestore-s3
Default Cube/Cube Store images are digest-pinned. Workload identity is preferable for S3; a referenced Secret is available where static credentials are unavoidable. Containers drop Linux capabilities and disallow privilege escalation, while Cube Store accepts only the component traffic selected by NetworkPolicy.
A telemetry demo that tests more than installation
The Kind environment creates PostgreSQL, a read-only Node/Pod collector, Cube
models, and Cube Core. The new update adds a separate authenticated ingestion
service and the AgentExecutions model. The Go image runs the manager,
collector, or ingestion as independent processes; event collection is not part
of reconciliation.
# From the source checkout; requires Docker, Kind, kubectl, curl, jq and Python.
python -m pip install -r demo/requirements-mcp.txt
make kind-up # Go controller
make kind-e2e
make kind-down
# The same demo through the Python implementation
make kind-up-kopf
make kind-e2e
make kind-down
The E2E checks exercise health, metadata, Kubernetes observations, and every execution-record kind through real Cube queries. A synthetic two-agent task has nine spans, two runs (one failed), one failed validation, 13,000 ms average run duration, 160 input tokens, 48 output tokens, and $0.0168 reported cost. These are test fixtures, not a claim that real agents performed those tasks. Checks cover bad credentials, invalid records, out-of-order delivery, duplicate retries, conflicting replays, and persistence after ingestion pod replacement. CI exercises Go and Kopf, including repeated setup, plus PostgreSQL integration tests and the Go race detector.
Kind detects amd64/arm64 and selects the matching Cube Store image. Access the
demo at http://127.0.0.1:4000; ingestion is internal with temporary loopback
forwarding during E2E. Production DNS, certificates, firewalls, backups, and
ingress remain explicit environment responsibilities.
A real weather agent, not only a synthetic trace
I also ran the weather agent from my separate platform checkout through a
standalone stdio MCP entrypoint. It uses the same Python WeatherHandler as
the platform's Kafka weather service, but this demonstration invoked it on the
host: it did not submit a Kafka task, run an LLM, or automatically instrument
the entire deployed fleet. The agent fetched real data from Open-Meteo.
For the October 17, 2026 capture, Reykjavik's observation at 20:45 was:
{
"location": "Reykjavik",
"current": {
"temperature_2m": 9.7,
"relative_humidity_2m": 91,
"wind_speed_10m": 45.0
}
}
The units were °C, %, and km/h. These are captured values, not a current
forecast or a performance benchmark. The completed trace
mcp-bb768566719a424aba21b58af46a6c8b was ingested into PostgreSQL, then read
back through Cube. Both returned the same BI metrics:
| Agent | Spans | Runs | Failed runs | Average run ms | Input/output tokens | Reported USD |
|---|---|---|---|---|---|---|
| weather | 3 | 1 | 0 | 2160.206 | 0 / 0 | 0 |
The three successful records describe the run, the MCP tool call, and the JSON result artifact reference. No model ran, so tokens and cost are zero—not estimated or fabricated. A new invocation gets its own trace ID and real timestamps.
The operator repository's
MCP execution client
can invoke a trusted stdio MCP server, save its actual response and completed
spans, submit them to ingestion, and verify the returned Cube graph. An
--execute-only mode explicitly skips ingestion and reports
cubeVerified: false; the full capture above reported cubeVerified: true.
The private agent implementation is not copied into the public operator repo.
See the reproduction guide
for environment setup, token handling, and commands.
What is stored in SQL, and what is semantic?
The execution records are physically persisted in
public.agent_executions: identities, parent links, timestamps, outcomes,
duration, usage, and typed detail fields in JSONB. The weather response itself
is a local .result.json artifact; SQL stores its URI and media type, not
normalized temperature or humidity observations. A file: URI is local to that
host, not an uploaded report or a portable download link.
Cube's AgentExecutions.yml defines the semantic measures and dimensions.
When a client requests runs or latency, Cube generates SQL over the stored
events. It does not create a materialized SQL table for every measure. The
verified /cubejs-api/v1/sql response reported external: false and
preAggregations: []: this demo queried PostgreSQL without a pre-aggregation.
Deploying Cube Store does not, by itself, prove caching or rollup acceleration.
For an authorized database audit, this query reproduces the captured run count and average latency:
SELECT agent_name,
count(*) FILTER (WHERE kind = 'run') AS runs,
avg(duration_ms) FILTER (WHERE kind = 'run') AS average_run_ms
FROM public.agent_executions
WHERE trace_id = 'mcp-bb768566719a424aba21b58af46a6c8b'
GROUP BY agent_name;
It returned weather, 1, and 2160.206. The corresponding Cube REST query
lets BI applications use the shared semantic definitions instead of
reimplementing that SQL in every consumer:
{
"query": {
"dimensions": ["AgentExecutions.agent"],
"measures": ["AgentExecutions.runs", "AgentExecutions.averageRunDurationMs"],
"filters": [{
"member": "AgentExecutions.traceId", "operator": "equals",
"values": ["mcp-bb768566719a424aba21b58af46a6c8b"]
}]
}
}
Post this to /cubejs-api/v1/load with a short-lived Cube JWT in
Authorization. For daily execution BI, group by agent and day using
AgentExecutions.endedAt, then compare run counts, failures, latency, and
reported model usage. For audit drill-down, query event/parent IDs, tool names,
and artifact URIs. Do not sum overlapping span durations as total run latency.
The query guide
includes the full aggregate query, raw-record SQL, and inspection of Cube's
generated SQL. Retention applies, so replace the captured trace ID with a fresh
one when reproducing the example.
This is BI about agent execution, not yet weather-domain BI. Analyzing temperature trends would require a separate observation table and Cube model. Nor does this configure a dashboard product or expose Cube's SQL wire protocol. The shared-token demo is not tenant isolation: server-side access policies are still required before external or multi-tenant use.
Public CI exercises the MCP → ingestion → PostgreSQL → Cube path for both controllers with a clearly labelled deterministic fixture. It does not depend on my private checkout or the availability of a live weather API. The live weather run and matching SQL/Cube results were verified separately.
Concrete artifacts: infrastructure versus agent output
For CubeCluster/analytics in single-store mode, the operator creates
analytics-api (Deployment, Service, and PDB), analytics-refresh-worker
(Deployment), analytics-cubestore (Deployment and Service), and a Cube Store
NetworkPolicy. Clustered mode substitutes router/worker StatefulSets and
Services. These are inspectable Kubernetes objects with owner references:
kubectl -n cube get deployments,statefulsets,services,pdb,networkpolicy
kubectl -n cube get cubecluster analytics -o yaml
The optional telemetry service creates the agent_executions PostgreSQL table;
the demo provides AgentExecutions.yml in the model ConfigMap. Cube generates
source SQL when clients query the model. The operator itself neither authors
application SQL nor creates reports, screenshots, or code patches.
Agents create those output artifacts. The telemetry service records their references and context. A completed artifact record could look like this (illustrative IDs/timestamps, not a real published report):
{
"eventId": "task-123-artifact",
"traceId": "task-123",
"runId": "task-123-analytics",
"parentId": "task-123-analytics",
"tenantId": "local",
"cluster": "kind-cube-demo",
"namespace": "cube-demo",
"agent": "analytics-worker",
"kind": "artifact",
"name": "usage-report",
"status": "succeeded",
"artifactUri": "urn:example:task-123:usage-report",
"artifactType": "application/json",
"startedAt": "2026-10-17T10:00:00Z",
"endedAt": "2026-10-17T10:00:01Z"
}
This may reference an agent-produced report, SQL file, test result, code patch, or screenshot stored elsewhere. Ingestion neither fetches nor stores the file; never send private content, credentials, or signed download URLs as metadata.
What we capture for a complete agent task
Agents instrument their runtime and submit terminal records to
POST /v1/executions, authenticated with a separate ingestion token. Each
record has an event ID, trace/run/parent links, agent, timestamps, and an outcome.
| Record | Captured evidence |
|---|---|
| Run | Agent identity, task name, success/failure/cancellation, latency. |
| Skill | Skill name/version and its parent run. |
| Tool | Tool identity, outcome, duration, parent skill or run. |
| Handoff | Target agent; a delegated run links to the handoff. |
| Artifact | URI and media type, not the artifact contents. |
| Validation | Check name and passed/failed/skipped outcome. |
| Model call | Provider/model, input/output tokens, reported USD cost. |
For example: an analytics worker runs operating-cube-core, calls a Cube query
tool, records a report URI, and hands review to a second agent. The reviewer
records its own run, model call, and validation result. All share a trace ID,
with parent IDs showing how work was nested or delegated. This answers
“which agents ran, what skills/tools did they use, what did they produce, and
how did verification turn out?” without collecting private reasoning.
Usage belongs only to model-call records, preventing double-counted run totals. Immutable IDs make identical delivery retries safe and reject changed replays. Retention defaults to seven days. Costs are producer-reported, not calculated billing. A Cube query can compare outcomes and usage by agent:
{
"query": {
"measures": ["AgentExecutions.runs", "AgentExecutions.failedRuns", "AgentExecutions.inputTokens", "AgentExecutions.outputTokens", "AgentExecutions.costUsd"],
"dimensions": ["AgentExecutions.agent"],
"limit": 100
}
}
The synthetic E2E task's expected usage rows are:
[
{"agent": "analytics-worker", "runs": 1, "failedRuns": 0, "inputTokens": 137, "outputTokens": 41, "costUsd": 0.0123},
{"agent": "reviewer", "runs": 1, "failedRuns": 1, "inputTokens": 23, "outputTokens": 7, "costUsd": 0.0045}
]
These are readable projections of expected semantic results; Cube's actual
responses use qualified member names such as AgentExecutions.runs and commonly
encode numeric values as strings. Filter by trace ID to inspect one task, or
by kind = skill and group by name/version to compare skill outcomes.
Inspect /cubejs-api/v1/meta before querying. The
execution contract
has submission examples and the complete field contract. This is not automatic
agent discovery, a live workflow engine, or chain-of-thought collection; it
requires no Kafka or Temporal. The local shared-token endpoint is not a
multi-tenant security boundary: external use requires trusted identity,
server-side tenant enforcement, TLS, network restrictions, and rate limits.
Agents consume governed analytics, not database credentials
A local read-only agent skill uses a short-lived Cube JWT supplied by a trusted
caller and calls the Cube Core REST contract. It first inspects /cubejs-api/v1/meta, then submits bounded semantic
queries to /cubejs-api/v1/load. This lets an agent use named measures and
dimensions without receiving PostgreSQL credentials or permission to execute
arbitrary SQL through the skill. Authentication, allowed models, and tenant
filters still require explicit server-side policy; the operator does not
configure OIDC or guarantee tenant isolation by itself.
Cube's hosted Chat API and official Cloud skills are a separate product boundary. This project documents them as optional Cube Cloud integrations; it does not claim those hosted features are part of open-source Cube Core.
Operational and licensing boundaries
Before production use, test CRD upgrades, restore procedures, controller failover, Cube Store recovery, database limits, and model changes under the target workload. “Production-oriented” means these controls are represented; it does not replace environment-specific qualification. The v0.2.0 catalog is for fresh installations, not an advertised automatic upgrade from v0.1.0.
This is an independent community project, not an official Cube product or a claim of Cube endorsement. It deploys upstream Cube and Cube Store images; credit belongs to the Cube authors and contributors. Original operator code is Apache-2.0. Cube Client is MIT licensed; Cube Backend is Apache-2.0 licensed. Upstream licenses/notices remain separate and must be preserved when redistributing those components.
Explore the project: GitHub repository · Architecture · Execution telemetry · Agent boundary
