Model Fleet: Declarative GPU Inference, Training, and Agent Operations

The Model Fleet Operator provides one declarative API for containerized inference, training, immutable datasets, and managed agents. The central principle is deliberately conservative: custom resources express intent, while the resulting workloads remain ordinary Kubernetes Deployments, Services, Jobs, KEDA scalers, and Cilium routes.

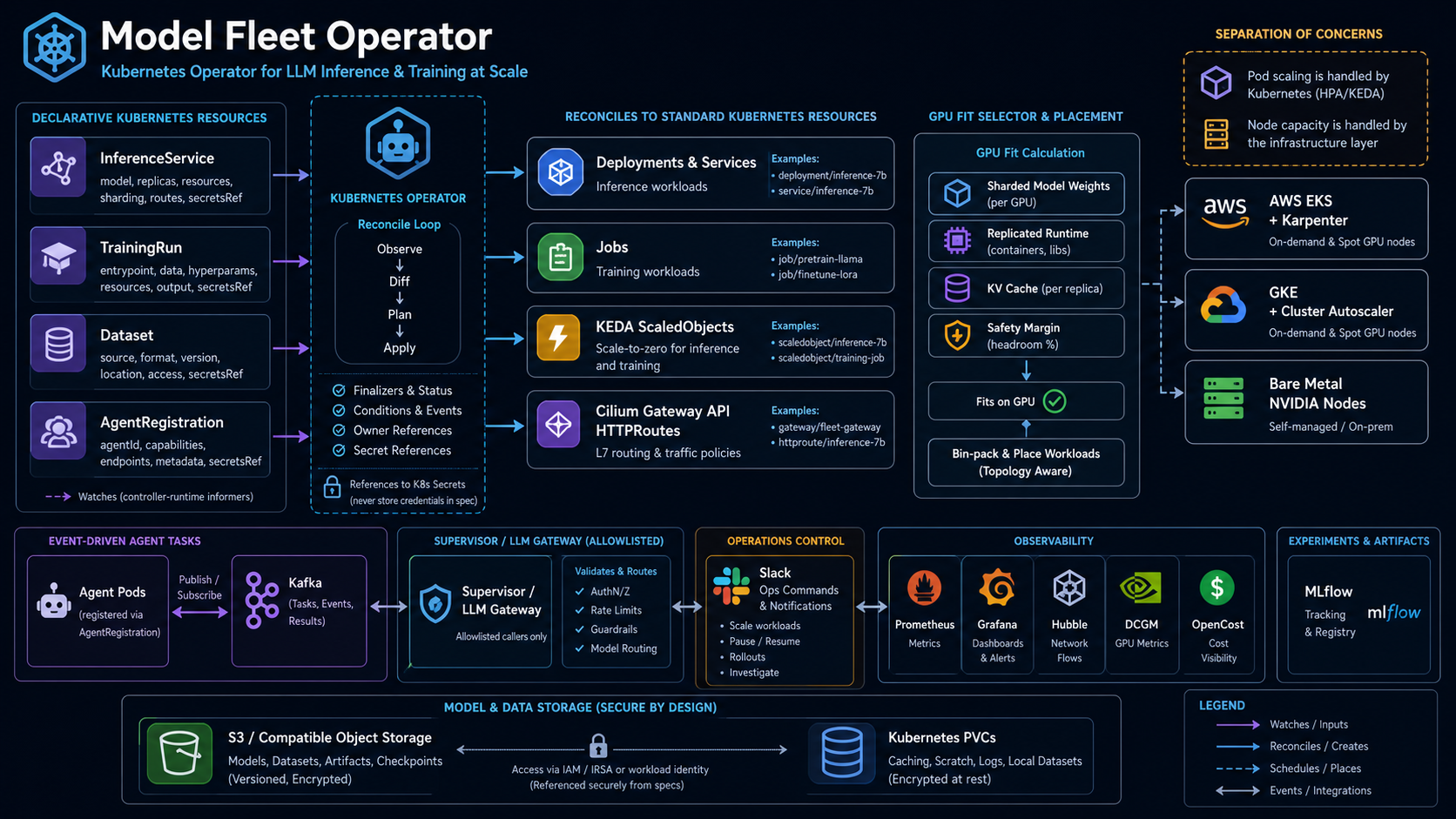

Model Fleet Operator architecture

Release status: v0.1.0 is an alpha release candidate. The controller-only OLM catalog has passed a fresh local installation test; the expanded GitHub Actions matrix and public-image release verification remain separate gates. An OperatorHub listing is not available yet. The repository's dated status record tracks the actual release and upstream-review outcome.

Four APIs divide ownership cleanly

InferenceService describes a model-serving container, resource requests, accelerator fit, scaling policy, Service, and optional Gateway API route. TrainingRun creates one immutable Job attempt with datasets, storage, deadlines, retries, parallelism, suspension, and cancellation. Dataset registers immutable version metadata, named splits, an access allowlist, and an optional read-only PVC. AgentRegistration links a versioned Agent Card to its runtime and operational state.

This avoids model-specific shell scripts while preserving Kubernetes debugging:

kubectl apply -f examples/inference-vllm.yaml
kubectl get isvc,deploy,service,scaledobject,httproute -n models

kubectl apply -f examples/training-pytorch.yaml
kubectl get trun,job -n models

The controller never downloads model data into its own pod and never reads a Hugging Face token. An init container can prefetch into a shared volume using a Secret reference; the inference container sees only the resulting model files. Training outputs and checkpoints belong in durable object storage, not the Job's ephemeral filesystem.

GPU fit is a scheduling input, not a performance promise

Requesting one GPU says nothing about whether a model fits. Model Fleet accepts module-level budgets split into sharded and replicated memory. Sharded weights are divided across the requested GPU count; runtime libraries and other replicated allocations are added per device, then a safety margin is applied:

required per GPU = ceil((Ī£ sharded / GPU count + Ī£ replicated) Ɨ (1 + margin))

For 90 GiB of sharded allocations, 4 GiB replicated per device, two GPUs, and a 10% margin, each GPU needs ceil((90 / 2 + 4) Ɨ 1.10) = 54 GiB. The operator maps that requirement to a portable GPU-memory capacity label and can also add required affinity for specific NVIDIA products.

This is admission and placement guidance—not dynamic VRAM bin packing and not a throughput guarantee. Kubernetes still allocates whole GPU devices. Drivers, device plugins, MIG configuration, and node labels remain infrastructure responsibilities, owned by cloud images or the NVIDIA GPU Operator.

AMD placement uses spec.accelerator.vendor: amd and amd.com/gpu; NVIDIA remains the default. Both inference and training validate vendor/count conflicts in resource requests and limits. AMD workloads require compatible drivers, an AMD device plugin and a tested ROCm container. Local tests verify generated resources and Kubernetes admission, not live AMD inference or GPU throughput.

Pod scaling and node capacity are different control loops

KEDA decides how many model pods are needed. A cloud or bare-metal capacity provider decides whether nodes exist to run pending pods. Keeping those loops separate makes the workload API portable:

True scale-to-zero requires a signal that exists while the model pod is absent, such as Kafka lag, gateway backlog, SQS, or Pub/Sub. A Prometheus metric emitted only by the sleeping model cannot wake itself. This detail is why the operator passes through external KEDA triggers rather than inventing a misleading ā€œautomaticā€ scaler.

Cilium networking and secure workload boundaries

An InferenceService creates an HTTPRoute; the platform administrator owns the shared Cilium Gateway, listener policy, certificates, and public DNS. This keeps model authors from silently creating load balancers. Dedicated service accounts and Secret references keep provider, registry, and repository credentials outside the operator and custom-resource status.

The same chart runs on Kind, MicroK8s, EKS, and GKE when Cilium owns Gateway API. Kind intentionally uses an echo workload because Docker nodes do not expose a GPU by default; it verifies controller reconciliation and L7 routing without pretending to benchmark inference.

git clone https://github.com/sqe/model-fleet-operator.git
cd model-fleet-operator
make kind-up
kubectl --context kind-model-fleet apply -f examples/inference-kind.yaml
curl -H 'Host: model.localhost' http://127.0.0.1:8080/
make kind-down

Install the controller without a complete platform

You do not need Kafka, Slack, GPUs, KEDA or Cilium to try the CPU-only controller examples. Those integrations become prerequisites only when their features are enabled. Choose one controller installation method per cluster.

For an existing Kubernetes cluster, clone the repository and install the Helm chart with its shared Gateway disabled:

git clone https://github.com/sqe/model-fleet-operator.git
cd model-fleet-operator
helm upgrade --install model-fleet charts/model-fleet-operator \
  --namespace model-fleet-system --create-namespace \
  --set gateway.enabled=false --wait
kubectl create namespace models
kubectl -n models apply -f config/olm/examples.yaml
kubectl -n models rollout status deployment/model-echo
kubectl -n models wait --for=condition=complete job/cpu-smoke-test --timeout=5m
kubectl -n models get inferenceservices,trainingruns,datasets,agentregistrations

The chart needs its configured controller image to be publicly available or accessible through your image-pull credentials. See the installation documentation for Kubernetes prerequisites and optional integrations.

The OLM alternative targets Kubernetes 1.34+ with classic OLM installed in namespace olm. Once the verified v0.1.0 release is available, its install.yaml asset installs the versioned project catalog, OperatorGroup and Subscription:

kubectl apply -f https://github.com/sqe/model-fleet-operator/releases/download/v0.1.0/install.yaml
kubectl -n model-fleet-system wait --for=create csv/model-fleet-operator.v0.1.0 --timeout=5m
kubectl -n model-fleet-system wait --for=jsonpath='{.status.phase}'=Succeeded \
  csv/model-fleet-operator.v0.1.0 --timeout=5m

This project catalog is not an OperatorHub listing. The OLM package installs the controller and four CRDs, not Slack/Kafka, the agent supervisor, model gateway, or AgentTask. Use Helm for those optional companions; never install a second controller alongside the OLM installation.

What the controller actually creates

The CPU example is deliberately small enough to inspect:

apiVersion: fleet.sqe.io/v1alpha1
kind: InferenceService
metadata:
  name: model-echo
  namespace: models
spec:
  model: {name: local-smoke-test}
  container: {image: ealen/echo-server:0.9.2, port: 80}
  replicas: 1
  service: {port: 80}
  gateway: {enabled: false}

It produces a model-echo Deployment and Service. A TrainingRun named cpu-smoke-test produces a Job with that name. The Dataset and AgentRegistration examples register metadata: the placeholder S3 URI is not downloaded, and an agent endpoint does not cause an agent to be deployed.

Input Reconciled artifact or status
InferenceService Deployment, Service, observed readiness; optional KEDA scaler and HTTPRoute
TrainingRun Job, completion/failure status, dataset-version and access checks
Dataset Immutable version metadata, classification, owner and ServiceAccount allowlist
AgentRegistration Registered Agent Card; optional replica management of an explicitly annotated existing Deployment
kubectl -n models get deployment model-echo -o yaml
kubectl -n models get service model-echo -o yaml
kubectl -n models logs job/cpu-smoke-test
kubectl -n models port-forward service/model-echo 18080:80
# In another terminal:
curl http://127.0.0.1:18080/olm-smoke

In the local OLM verification, the training resource reached Succeeded, both metadata resources reached Registered, and inference returned to Ready after suspension and resumption. The HTTP echo response contained http.originalUrl: /olm-smoke and environment.MODEL_NAME: local-smoke-test. These are controller-and-network checks, not a claim that an LLM ran on a GPU.

The agent and operations control plane

The optional registry persists Agent Cards as AgentRegistration resources. The supervisor resolves an exact skill or asks an allowlisted LLM gateway to choose among registered skills, then publishes JSON-RPC through Kafka. Workers publish a correlated result before committing the task. A built-in operations agent can inspect fleet state and request explicit inference or training actions using the same contract.

Slack uses Socket Mode, so the bot needs no public callback ingress. Read-only inventory is the safe default. Mutating operations require user/channel allowlists, and quota requests are disabled until a reviewed provider policy is attached. Sensitive commands require explicit confirmation rather than treating natural language as authorization.

Operational visibility combines Prometheus, Grafana, Hubble, DCGM GPU metrics, OpenCost, cloud billing exports, and MLflow. Billing and OpenCost can overlap, so the reporting path presents them separately instead of adding them into a misleading total. Grafana snapshots can stream to Slack without writing PNGs to the bot filesystem.

Concrete Qwen patterns

Apple Silicon development follows a separate execution boundary: MLX runs natively on macOS, because Linux kind nodes cannot access Metal. An allowlisted gateway route can target host.docker.internal while Kubernetes inference routes target ordinary Services. The operator does not manage the native MLX process. The accelerator guide includes the guarded launcher and Helm values.

Existing secured OpenAI-compatible endpoints on Windows or phones can also be explicit gateway routes. This is model-neutral: Gemma, Qwen, Phi, SmolLM and small Llama variants are candidate families, subject to device memory, runtime, quantization and model licensing—not a claim that every model works on every phone. The phone SLM values example routes to an existing endpoint; it does not install an app or manage the device. A browser inference worker does not automatically become an HTTP model server.

The separate Open Compute companion explores opt-in browser/desktop workers, durable task leases and an adapter for existing Slurm clusters. It is not bundled with Model Fleet, does not turn phones into native Slurm nodes, and does not automatically bridge its jobs into Kubernetes custom resources.

Gateway request/error counters and latency histograms carry a runtime label, so Grafana can distinguish MLX development traffic from Kubernetes model services. Token and estimated-cost counters use the upstream usage payload and configured prices, not a measurement of electrical consumption or a cloud bill. For example, Prometheus can query request rate by runtime:

sum by (runtime, result) (
  rate(model_fleet_upstream_requests_total[5m])
)

The examples include a quantized Qwen 27B inference/gateway profile and a Qwen3-VL image LoRA training shape. Quantization reduces weight memory but does not make KV cache, activations, runtime allocations, context length, or training memory disappear. A 24 GiB target is a testable fit hypothesis; production capacity must be measured on the exact GPU, driver, serving build, sequence length, and concurrency. The operator captures those requirements without hard-coding one model family.

CI and release verification are part of the contract

Pull requests and main-branch changes run independent checks for:

The release workflow reuses CI, builds multi-architecture controller, bundle and catalog images, then verifies anonymous pulls and installation through the published catalog before creating a GitHub alpha release. Release assets include Python distributions, the Helm archive, the OLM bundle archive, a digest-pinned installation manifest, image references and SHA-256 checksums. OLM diagnostics are retained when verification fails.

This does not certify GPU throughput, live Slack/Kafka delivery, cloud machine provisioning or every optional integration. OperatorHub acceptance is a separate upstream review, not an automatic consequence of a green release workflow.

The result is a control plane with clear boundaries: model authors declare workloads and immutable inputs, Kubernetes reconciles pods and Jobs, KEDA owns replica demand, infrastructure owns nodes, Cilium owns ingress, and observability systems provide evidence. Each component can be replaced without rewriting the custom-resource contract.

Explore the project: GitHub repository Ā· GPU capacity Ā· Agent control plane

kubernetes operator gpu inference training keda cilium slack kafka
